DX3L (Mfg 06/15 — Present) Tube Heater Parts
 |
| DX3 Series lnsert |
DX3 Series
| COMMON COMPONENTS | ||
| Part Description | Original Part Number | Replacement |
| Fan (50MBH to 150MBH) | TP-55A | TP-55A |
| Fan (175MBH and Above Only) | TP-3215 | TP-3215 |
| Air Pressure Switch | See Pressure Switch Chart Below | See Pressure Switch Chart Below |
| Circuit Board | TP-851B | TP-851B |
| Wire Harness | TP-353 | TP-353 |
| Transformer | TP-826 | TP-826 |
| Terminal Block | TP-329 | TP-329 |
| Ignition Device | TP-50A | TP-50A |
| 50-125 MBH Low Stainless Steel Burner (Natural Gas only) | TP-3070 | TP-3072 |
| 150-200 MBH Mid Stainless Steel Burner (Nat & LP Gas) | TP-201B | TP-201B |
| Natural Gas Valve | TP-1040 | TP-1040 |
| LP Gas Valve | TP-1041 | TP-1041 |

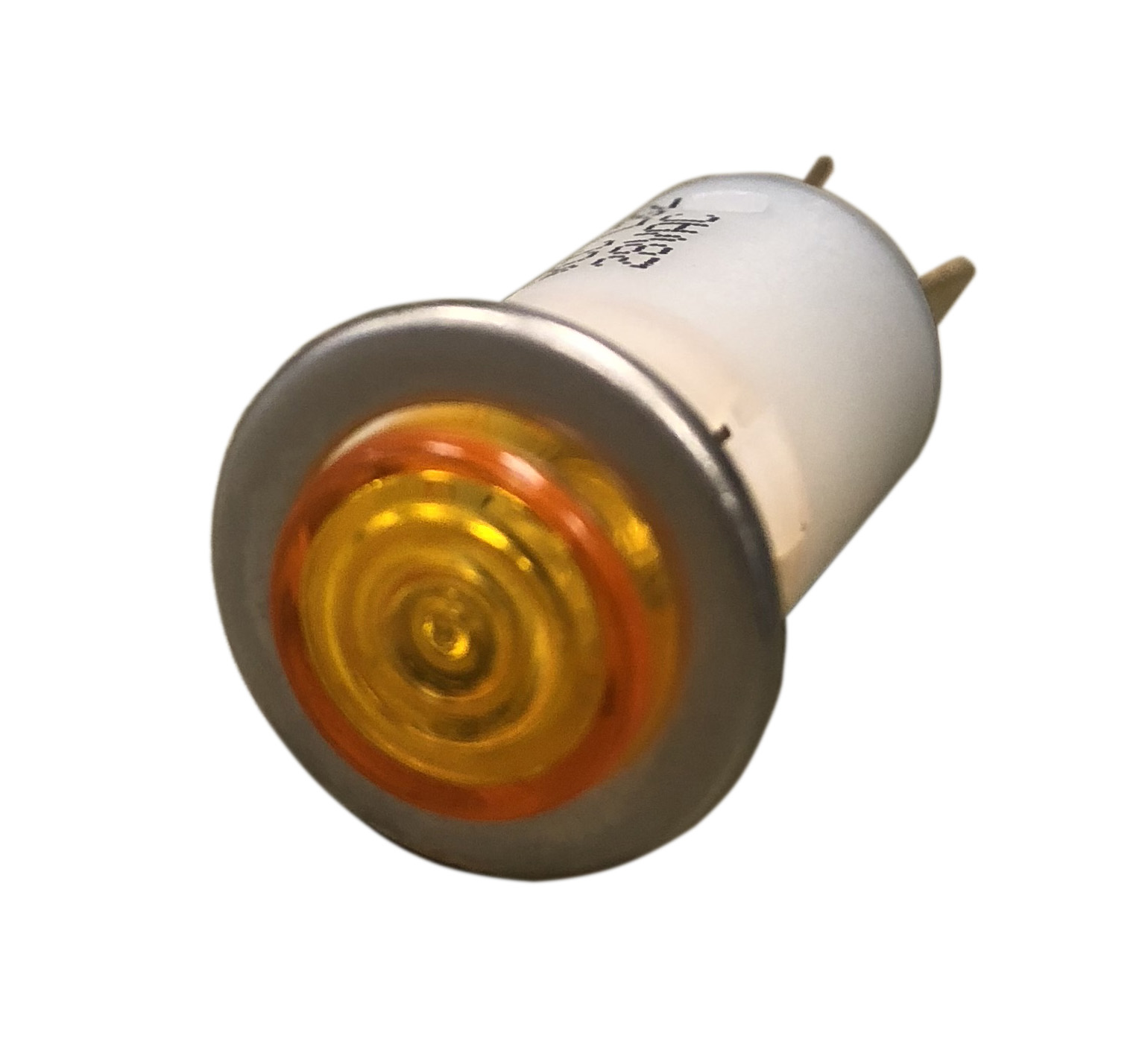

| 24V Yellow Indicator Light | TP-828A | TP-828A |

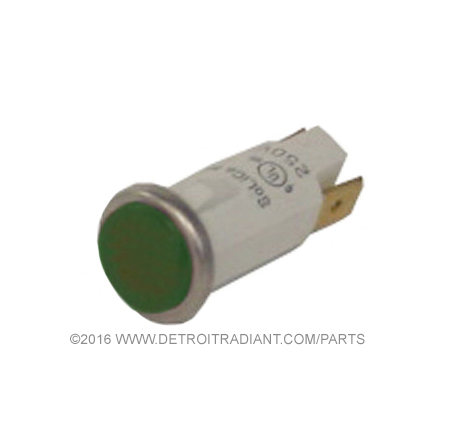

| 24V Green Indicator Light | TP-1428A | TP-1428A |
| Flame Rod | TP-222 | TP-222 |
| 16″ Tube | TP-3380 | TP-3380 |
| Combustion Chamber2, 50-125 MBH (Coated Aluminized Steel) | TP-26A | TP-26A |
| Combustion Chamber2, 150-200 MBH (Titanium Coated Steel) | TP-26B | TP-26B |
| Combustion Chamber2, 75-150 MBH (409 Stainless Steel) | TP-26E | TP-26E |
| Radiant Tubes (Coated Aluminized Steel) | TP-26A | TP-26A |
| Radiant Tubes (304 Stainless Steel) | TP-26D | TP-26D |
| 10 Ft. Highly Polished Aluminum Reflector Section3 | TP-20C | TP-20C |
| Baffle | TP-65I | TP-65I |
1 Refers to the first 10′ section of tubing downstream of burner.
2 Models with stainless steel upgrades require TP-20D 10 Ft. Reflector Sections.
| PRESSURE SWITCHES | ||||
| BTU/H Range (x1000) | 50 | 65-75 | 100-125 | 150-200 |
| Part Number | TP-264E | TP-264D | TP-1264A | TP-264F |
| X-Ref., IS220- | -216051F5169 | -20051F5170 | -25051F5127 | -35051F5132 |
| Normal Setting | Open | Open | Open | Open |
