DTHS Common Parts
Determine Manufacture Date
Date Code Chart
Sample Burner Box Tag
DTHS Heater Replacement Options
There are not many parts still available for this 40+ year old heater series. A new heater is recommended to replace the old unit.
The DES3 Series is a great replacement.
DTHS Parts by Year
Part Description | DTHS | DTHS | DTHS-2 | DTHS-2 | DTHS-2 | DTHS-2 125, 150 MBH | DTHS-3 125 MBH | DTHS-3 150 MBH |
Prior to 1984 | 1985 to 11/1986 | 11/1986 to 01/1987 | 01/1987 to 04/1992 | 04/1992 to 01/2001 | 1988 to1989 | 1989 to1994 | 1990 to1994 | |
Inducer Fan Blower | N/A | TP-55A | TP-55A | TP-55A | TP-55A | TP-55A | TP-55A | TP-55A |
Circuit Board | N/A | N/A | N/A | N/A | N/A | N/A | TP-78D & TP-390 | TP-78D & TP-390 |
Radiant Sensor | TP-64 | TP-64 | TP-64 | TP-64 | TP-64 | TP-64 | TP-64 | TP-64 |
Ignition Device | TP-50A | TP-50A | TP-50A | TP-50A | TP-50A | TP-50A | TP-50A | TP-50A |
Gas Valve (Nat) | N/A | N/A | N/A | N/A | N/A | N/A | TP-107 VR4205M-1324 | TP-79 VR4205M-1308 |
Gas Valve (LP) | N/A | N/A | N/A | N/A | N/A | N/A | TP-107P VR4205M-1357 | TP-107P VR4205M-1357 |
Control Voltage | 120V | 120V | 120V | 120V | 120V | 120V | 120V | 120V |
IOM Link |
Pressure Switch
Model | Year Range | 40 MBH | 50-75 MBH | 100 MBH | 125 MBH | 150 MBH | |
DTHS | 11/1984 and Prior 1985 to 11/1986 | Switch 1 N.O. Switch 2 N.C. | N/A N/A | N/A N/A | N/A N/A | ||
DTHS-2 | 11/1986 to 01/1987 01/1987 to 04/1992 04/1992 to 01/2001 | Switch 1 N.O. Switch 2 N.C. | TP-264B TP-60C | TP-264B TP-60C | TP-264B TP-60C | ||
DTHS-2 | 1988 to 1989 | Switch 1 N.O. Switch 2 N.C. | TP-264B TP-60D | TP-264B TP-60D | |||
DTHS-3 | 1989 to 1994 | Switch 1 N.O. Switch 2 N.C. | TP-264B TP-60D | TP-264B TP-60D |
Note: For heaters with (2) pressure switches, he burner switch in the blower compartment is a normally open switch and the exhaust switch in the gas valve compartment is a normally closed switch.
Burner Control Box Parts
Other Information
Troubleshooting
Tube & Reflector Components
 | 4″ 180º bend (U) shaped fitting. | |
 | 10' Aluminum Reflector | |
 | Reflector and Elbow Package - Kit includes (1) RE, (1) E6. | |

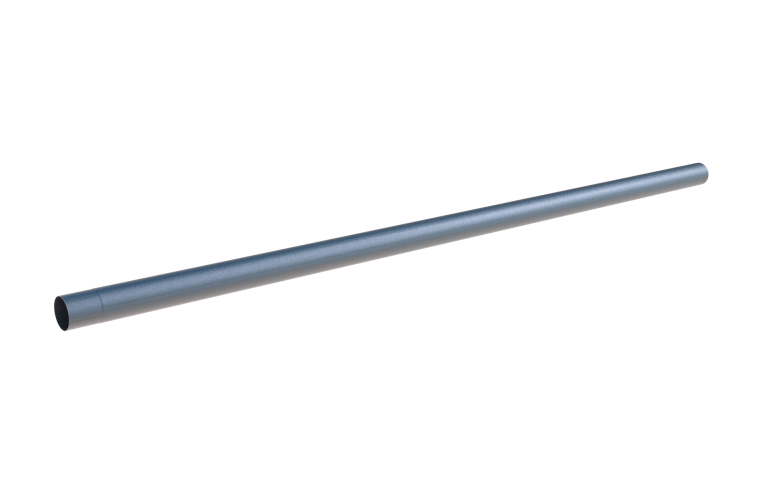

 | 10' x 4" Uncoated Steel - Radiant Tube. ( sub TP-26A "Aluminized" version as needed) | |

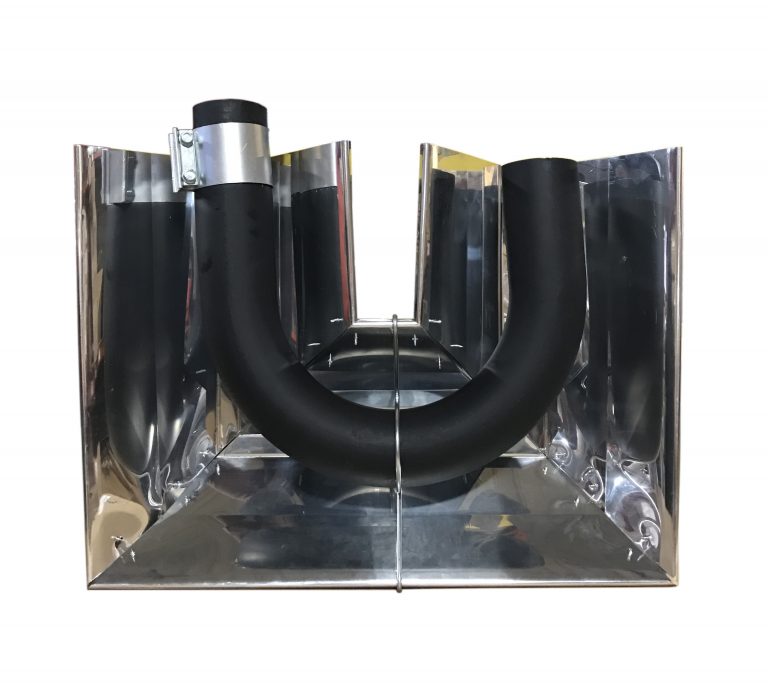

 | Reflector and “U” bend package - (1) TF1B and (1) RU. | |
 | 10' x 4" Aluminized Radiant Tube or Combustion Tube (up to 125 MBH). | |
| 10' x 4" Titanium Combustion Tube Used On 150 MBH heaters or higher. |
